Custom TextBox
Custom TextBox PDF

Custom TextBox shows how to create a Style for a TextBox using Windows App SDK.

Step 1

Follow Setup and Start on how to get Setup and Install what you need for Visual Studio 2022 and Windows App SDK.

In Windows 11 choose Start and then find or search for Visual Studio 2022 and then select it.
Visual Studio 2022
Once Visual Studio 2022 has started select Create a new project.
Create a new project
Then choose the Blank App, Packages (WinUI in Desktop) and then select Next.
Blank App, Packages (WinUI in Desktop)
After that in Configure your new project type in the Project name as CustomTextBox, then select a Location and then select Create to start a new Solution.
Configure project

Step 2

Then in Visual Studio within Solution Explorer for the Solution double-click on App.xaml to see the XAML for the Project.

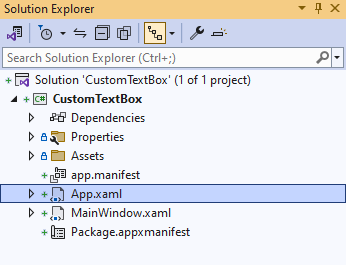

Solution Explorer App.xaml

Step 3

In the XAML for App.xaml below the Comment of <!-- Other app resources here --> type in the following XAML for the Style of CustomTextBox that will be used to target a TextBox:


<Style x:Key="CustomTextBox" TargetType="TextBox">
    <Setter Property="MinWidth"
    Value="{ThemeResource TextControlThemeMinWidth}"/>
    <Setter Property="MinHeight"
    Value="{ThemeResource TextControlThemeMinHeight}"/>
    <Setter Property="Foreground" Value="Gold"/>
    <Setter Property="Background"
    Value="{ThemeResource TextControlBackground}"/>
    <Setter Property="SelectionHighlightColor"
    Value="{ThemeResource TextControlSelectionHighlightColor}"/>
    <Setter Property="BorderThickness" Value="2"/>
    <Setter Property="FontFamily"
    Value="{ThemeResource ContentControlThemeFontFamily}"/>
    <Setter Property="FontSize"
    Value="{ThemeResource ControlContentThemeFontSize}"/>
    <Setter Property="ScrollViewer.HorizontalScrollMode" Value="Auto"/>
    <Setter Property="ScrollViewer.VerticalScrollMode" Value="Auto"/>
    <Setter Property="ScrollViewer.HorizontalScrollBarVisibility" Value="Hidden"/>
    <Setter Property="ScrollViewer.VerticalScrollBarVisibility" Value="Hidden"/>
    <Setter Property="ScrollViewer.IsDeferredScrollingEnabled" Value="False"/>
    <Setter Property="Padding" Value="{ThemeResource TextControlThemePadding}"/>
    <Setter Property="Template">
        <Setter.Value>
            <ControlTemplate TargetType="TextBox">
                <Grid>
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="*"/>
                        <ColumnDefinition Width="Auto"/>
                    </Grid.ColumnDefinitions>
                    <Grid.RowDefinitions>
                        <RowDefinition Height="Auto"/>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>
                    <VisualStateManager.VisualStateGroups>
                        <VisualStateGroup x:Name="CommonStates">
                            <!-- Visual State Disabled -->

                            <!-- Visual State Normal & Pointer Over -->

                            <!-- Visual State Focused -->

                        </VisualStateGroup>
                    </VisualStateManager.VisualStateGroups>
                    <!-- Content -->

                </Grid>
            </ControlTemplate>
        </Setter.Value>
    </Setter>
</Style>

Step 4

While still the XAML for App.xaml below the Comment of <!-- Visual State Disabled --> type in the following XAML:


<VisualState x:Name="Disabled">
    <Storyboard>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="HeaderContentPresenter">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource TextControlHeaderForegroundDisabled}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Background"
            Storyboard.TargetName="BorderElement">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource TextControlBackgroundDisabled}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="BorderBrush"
            Storyboard.TargetName="BorderElement">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource TextControlBorderBrushDisabled}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="ContentElement">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource TextControlForegroundDisabled}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="PlaceholderTextContentPresenter">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource TextControlPlaceholderForegroundDisabled}"/>
        </ObjectAnimationUsingKeyFrames>
    </Storyboard>
</VisualState>

This XAML is for the Visual State that will represent the State of Disabled for the TextBox used in the Custom TextBox.

Step 5

While still the XAML for App.xaml below the Comment of <!-- Visual State Normal & Pointer Over --> type in the following XAML:


<VisualState x:Name="Normal"/>
<VisualState x:Name="PointerOver">
    <Storyboard>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="BorderBrush"
            Storyboard.TargetName="BorderElement">
            <DiscreteObjectKeyFrame KeyTime="0" Value="GoldenRod"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Background"
            Storyboard.TargetName="BorderElement">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource TextControlBackgroundPointerOver}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="PlaceholderTextContentPresenter">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource TextControlPlaceholderForegroundPointerOver}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="ContentElement">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource TextControlForegroundPointerOver}"/>
        </ObjectAnimationUsingKeyFrames>
    </Storyboard>
</VisualState>

This XAML is for the Visual State that will represent the States of Normal and PointerOver for the TextBox used in the Custom TextBox.

Step 6

While still the XAML for App.xaml below the Comment of <!-- Visual State Focused --> type in the following XAML:


<VisualState x:Name="Focused">
    <Storyboard>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="PlaceholderTextContentPresenter">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource TextControlPlaceholderForegroundFocused}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Background"
            Storyboard.TargetName="BorderElement">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource TextControlBackgroundFocused}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="BorderBrush"
            Storyboard.TargetName="BorderElement">
            <DiscreteObjectKeyFrame KeyTime="0" Value="Gold"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="ContentElement">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource TextControlForegroundFocused}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="RequestedTheme"
            Storyboard.TargetName="ContentElement">
            <DiscreteObjectKeyFrame KeyTime="0" Value="Light"/>
        </ObjectAnimationUsingKeyFrames>
    </Storyboard>
</VisualState>

This XAML is for the Visual State that will represent the State of Focused for the TextBox used in the Custom TextBox.

Step 7

Then in the XAML for App.xaml below the Comment of <!-- Content --> type in the following XAML:


<Border x:Name="BorderElement" Grid.Row="1"
Grid.RowSpan="1" Grid.ColumnSpan="2" CornerRadius="15"
BorderBrush="Salmon" Background="LightSalmon"
BorderThickness="{TemplateBinding BorderThickness}" />
<ScrollViewer x:Name="ContentElement" Grid.Row="1"
AutomationProperties.AccessibilityView="Raw"
IsTabStop="False" ZoomMode="Disabled"
HorizontalScrollMode="{TemplateBinding
ScrollViewer.HorizontalScrollMode}"
HorizontalScrollBarVisibility="{TemplateBinding
ScrollViewer.HorizontalScrollBarVisibility}"
IsHorizontalRailEnabled="{TemplateBinding
ScrollViewer.IsHorizontalRailEnabled}"
IsVerticalRailEnabled="{TemplateBinding
ScrollViewer.IsVerticalRailEnabled}"
IsDeferredScrollingEnabled="{TemplateBinding
ScrollViewer.IsDeferredScrollingEnabled}"
Margin="{TemplateBinding BorderThickness}"
Padding="{TemplateBinding Padding}"
VerticalScrollBarVisibility="{TemplateBinding
ScrollViewer.VerticalScrollBarVisibility}"
VerticalScrollMode="{TemplateBinding
ScrollViewer.VerticalScrollMode}" />
<ContentPresenter x:Name="PlaceholderTextContentPresenter"
Grid.Row="1" Grid.ColumnSpan="2"
Content="{TemplateBinding PlaceholderText}"
Foreground="Gold" IsHitTestVisible="False"
Margin="{TemplateBinding BorderThickness}"
Padding="{TemplateBinding Padding}"
TextWrapping="{TemplateBinding TextWrapping}"/>

This XAML is the Content for the layout of a TextBox when the Style is applied for the Custom TextBox.

Step 8

Within Solution Explorer for the Solution double-click on MainWindow.xaml to see the XAML for the Main Window.

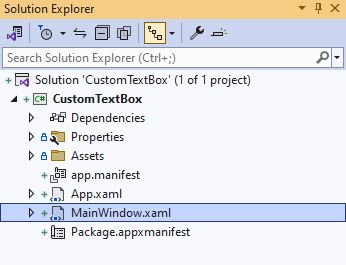

Solution Explorer MainWindow.xaml

Step 9

In the XAML for MainWindow.xaml there will be some XAML for a StackPanel, this should be Removed:


<StackPanel Orientation="Horizontal"
HorizontalAlignment="Center" VerticalAlignment="Center">
    <Button x:Name="myButton" Click="myButton_Click">Click Me</Button>
</StackPanel>

Step 10

While still in the XAML for MainWindow.xaml above </Window>, type in the following XAML:


<TextBox Margin="50" Text="TextBox" VerticalAlignment="Center"
Style="{StaticResource CustomTextBox}"/>

This XAML contains a TextBox with Style set to the StaticResource of CustomTextBox from App.xaml.

Step 11

Within Solution Explorer for the Solution select the arrow next to MainWindow.xaml then double-click on MainWindow.xaml.cs to see the Code for the Main Window.

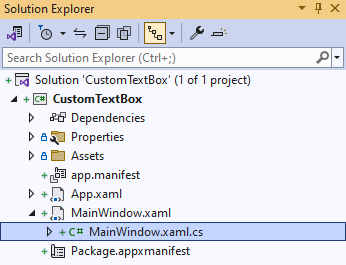

Solution Explorer MainWindow.xaml.cs

Step 12

In the Code for MainWindow.xaml.cs there be a Method of myButton_Click(...) this should be Removed by removing the following:


private void myButton_Click(object sender, RoutedEventArgs e)
{
    myButton.Content = "Clicked";
}

Step 13

That completes the Windows App SDK application. In Visual Studio 2022 from the Toolbar select CustomTextBox (Package) to Start the application.
CustomTextBox (Package)

Step 14

Once running you will see the Custom TextBox displayed.

Custom TextBox Running and Output

Step 15

To Exit the Windows App SDK application, select the Close button from the top right of the application as that concludes this Tutorial for Windows App SDK from tutorialr.com!
Close application
