Custom ComboBox

Learn creating a Custom ComboBox using Windows App SDK with this Tutorial

Custom ComboBox
Custom ComboBox PDF

Custom ComboBox shows how to create a Style for a ComboBox using Windows App SDK.

Step 1

Follow Setup and Start on how to get Setup and Install what you need for Visual Studio 2022 and Windows App SDK.

In Windows 11 choose Start and then find or search for Visual Studio 2022 and then select it.
Visual Studio 2022
Once Visual Studio 2022 has started select Create a new project.
Create a new project
Then choose the Blank App, Packages (WinUI in Desktop) and then select Next.
Blank App, Packages (WinUI in Desktop)
After that in Configure your new project type in the Project name as CustomComboBox, then select a Location and then select Create to start a new Solution.
Configure project

Step 2

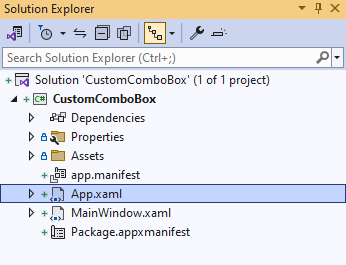

Then in Visual Studio within Solution Explorer for the Solution double-click on App.xaml to see the XAML for the Project.
Solution Explorer App.xaml

Step 3

In the XAML for App.xaml below the Comment of <!-- Other app resources here --> type in the following XAML for the Style of CustomComboBox that will be used to target a ComboBox:


<Style x:Key="CustomComboBox" TargetType="ComboBox">
    <!-- Setters -->
    <Setter Property="Template">
        <Setter.Value>
            <ControlTemplate TargetType="ComboBox">
                <Grid x:Name="LayoutRoot">
                    <Grid.Resources>
                        <!-- Resources -->

                    </Grid.Resources>
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="*"/>
                        <ColumnDefinition Width="32"/>
                    </Grid.ColumnDefinitions>
                    <Grid.RowDefinitions>
                        <RowDefinition Height="Auto"/>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>
                    <VisualStateManager.VisualStateGroups>
                        <VisualStateGroup x:Name="CommonStates">
                            <!-- Visual State Normal, Pointer Over & Pressed -->

                            <!-- Visual State Disabled -->

                        </VisualStateGroup>
                        <VisualStateGroup x:Name="FocusStates">
                            <!-- Visual State Focused -->

                            <!-- Visual State Focused Pressed-->

                            <!-- Unfocused, Pointer Focused & Focused Drop Down -->

                        </VisualStateGroup>
                        <!-- Visual State Group Drop Down States -->

                    </VisualStateManager.VisualStateGroups>
                    <!-- Content -->

                    <!-- Popup -->

                </Grid>
            </ControlTemplate>
        </Setter.Value>
    </Setter>
</Style>

Step 4

While still the XAML for App.xaml below the Comment of <!-- Setters --> type in the following XAML:


<Setter Property="Padding" Value="12,5,0,7"/>
<Setter Property="MinWidth" Value="{ThemeResource ComboBoxThemeMinWidth}"/>
<Setter Property="Foreground" Value="Gold"/>
<Setter Property="Background" Value="{ThemeResource ComboBoxBackground}"/>
<Setter Property="BorderBrush" Value="{ThemeResource ComboBoxBorderBrush}"/>
<Setter Property="BorderThickness"
Value="{ThemeResource ComboBoxBorderThemeThickness}"/>
<Setter Property="TabNavigation" Value="Once"/>
<Setter Property="ScrollViewer.HorizontalScrollBarVisibility" Value="Disabled"/>
<Setter Property="ScrollViewer.VerticalScrollBarVisibility" Value="Auto"/>
<Setter Property="ScrollViewer.HorizontalScrollMode" Value="Disabled"/>
<Setter Property="ScrollViewer.VerticalScrollMode" Value="Auto"/>
<Setter Property="ScrollViewer.IsVerticalRailEnabled" Value="True"/>
<Setter Property="ScrollViewer.IsDeferredScrollingEnabled" Value="False"/>
<Setter Property="ScrollViewer.BringIntoViewOnFocusChange" Value="True"/>
<Setter Property="HorizontalContentAlignment" Value="Stretch"/>
<Setter Property="HorizontalAlignment" Value="Left"/>
<Setter Property="VerticalAlignment" Value="Top"/>
<Setter Property="FontFamily"
Value="{ThemeResource ContentControlThemeFontFamily}"/>
<Setter Property="FontSize"
Value="{ThemeResource ControlContentThemeFontSize}"/>
<Setter Property="ItemsPanel">
    <Setter.Value>
        <ItemsPanelTemplate>
            <CarouselPanel/>
        </ItemsPanelTemplate>
    </Setter.Value>
</Setter>

This XAML is for the Setters for the Properties of the ComboBox used in the Custom ComboBox.

Step 5

While still the XAML for App.xaml below the Comment of <!-- Resources --> type in the following XAML:


<Storyboard x:Key="OverlayOpeningAnimation">
    <DoubleAnimationUsingKeyFrames
        Storyboard.TargetProperty="Opacity">
        <DiscreteDoubleKeyFrame
        KeyTime="0:0:0" Value="0.0"/>
        <SplineDoubleKeyFrame
        KeySpline="0.1,0.9 0.2,1.0"
        KeyTime="0:0:0.383" Value="1.0"/>
    </DoubleAnimationUsingKeyFrames>
</Storyboard>
<Storyboard x:Key="OverlayClosingAnimation">
    <DoubleAnimationUsingKeyFrames
        Storyboard.TargetProperty="Opacity">
        <DiscreteDoubleKeyFrame
        KeyTime="0:0:0" Value="1.0"/>
        <SplineDoubleKeyFrame
        KeySpline="0.1,0.9 0.2,1.0"
        KeyTime="0:0:0.216" Value="0.0"/>
    </DoubleAnimationUsingKeyFrames>
</Storyboard>

This XAML is for the Resources for two sets of Storyboard for Animations for the ComboBox used in the Custom ComboBox.

Step 6

While still the XAML for App.xaml below the Comment of <!-- Visual State Normal, Pointer Over & Pressed --> type in the following XAML:


<VisualState x:Name="Normal"/>
<VisualState x:Name="PointerOver">
    <Storyboard>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Background"
            Storyboard.TargetName="Background">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxBackgroundPointerOver}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="BorderBrush"
            Storyboard.TargetName="Background">
            <DiscreteObjectKeyFrame KeyTime="0" Value="GoldenRod"/>
        </ObjectAnimationUsingKeyFrames>
    </Storyboard>
</VisualState>
<VisualState x:Name="Pressed">
    <Storyboard>
        <ObjectAnimationUsingKeyFrames
        Storyboard.TargetProperty="Background"
        Storyboard.TargetName="Background">
            <DiscreteObjectKeyFrame KeyTime="0"
        Value="{ThemeResource ComboBoxBackgroundPressed}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
        Storyboard.TargetProperty="BorderBrush"
        Storyboard.TargetName="Background">
            <DiscreteObjectKeyFrame KeyTime="0"
        Value="{ThemeResource ComboBoxBorderBrushPressed}"/>
        </ObjectAnimationUsingKeyFrames>
    </Storyboard>
</VisualState>

This XAML is for the Visual States that will represent the States of Normal, PointerOver and Pressed for the ComboBox used in the Custom ComboBox.

Step 7

While still the XAML for App.xaml below the Comment of <!-- Visual State Disabled --> type in the following XAML:


<VisualState x:Name="Disabled">
    <Storyboard>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Background"
            Storyboard.TargetName="Background">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxBackgroundDisabled}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="BorderBrush"
            Storyboard.TargetName="Background">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxBorderBrushDisabled}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="HeaderContentPresenter">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxForegroundDisabled}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="ContentPresenter">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxForegroundDisabled}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="PlaceholderTextBlock">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxForegroundDisabled}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="DropDownGlyph">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxDropDownGlyphForegroundDisabled}"/>
        </ObjectAnimationUsingKeyFrames>
    </Storyboard>
</VisualState>

This XAML is for the Visual State that will represent the State of Disabled for the ComboBox used in the Custom ComboBox.

Step 8

While still the XAML for App.xaml below the Comment of <!-- Visual State Focused --> type in the following XAML:


<VisualState x:Name="Focused">
    <Storyboard>
        <DoubleAnimation Duration="0" To="1"
        Storyboard.TargetProperty="Opacity"
        Storyboard.TargetName="HighlightBackground"/>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="BorderBrush"
            Storyboard.TargetName="HighlightBackground">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxBackgroundBorderBrushFocused}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="ContentPresenter">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxForegroundFocused}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="PlaceholderTextBlock">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxForegroundFocused}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="DropDownGlyph">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxDropDownGlyphForegroundFocused}"/>
        </ObjectAnimationUsingKeyFrames>
    </Storyboard>
</VisualState>

This XAML is for the Visual State that will represent the State of Focused for the ComboBox used in the Custom ComboBox.

Step 9

While still the XAML for App.xaml below the Comment of <!-- Visual State Focused Pressed --> type in the following XAML:


<VisualState x:Name="FocusedPressed">
    <Storyboard>
        <DoubleAnimation Duration="0" To="1"
        Storyboard.TargetProperty="Opacity"
        Storyboard.TargetName="HighlightBackground"/>
        <ObjectAnimationUsingKeyFrames
        Storyboard.TargetProperty="Foreground"
        Storyboard.TargetName="ContentPresenter">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxForegroundFocusedPressed}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="PlaceholderTextBlock">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxPlaceHolderForegroundFocusedPressed}"/>
        </ObjectAnimationUsingKeyFrames>
        <ObjectAnimationUsingKeyFrames
            Storyboard.TargetProperty="Foreground"
            Storyboard.TargetName="DropDownGlyph">
            <DiscreteObjectKeyFrame KeyTime="0"
            Value="{ThemeResource ComboBoxDropDownGlyphForegroundFocusedPressed}"/>
        </ObjectAnimationUsingKeyFrames>
    </Storyboard>
</VisualState>

This XAML is for the Visual State that will represent the State of FocusedPressed for the ComboBox used in the Custom ComboBox.

Step 10

While still the XAML for App.xaml below the Comment of <!-- Unfocused, Pointer Focused & Focused Drop Down --> type in the following XAML:


<VisualState x:Name="Unfocused"/>
<VisualState x:Name="PointerFocused"/>
<VisualState x:Name="FocusedDropDown">
    <Storyboard>
        <ObjectAnimationUsingKeyFrames Duration="0"
            Storyboard.TargetProperty="Visibility"
            Storyboard.TargetName="PopupBorder">
            <DiscreteObjectKeyFrame KeyTime="0">
                <DiscreteObjectKeyFrame.Value>
                    <Visibility>Visible</Visibility>
                </DiscreteObjectKeyFrame.Value>
            </DiscreteObjectKeyFrame>
        </ObjectAnimationUsingKeyFrames>
    </Storyboard>
</VisualState>

This XAML is for the Visual States that will represent the States of Unfocused, PointerFocused and FocusedDropDown for the ComboBox used in the Custom ComboBox.

Step 11

While still the XAML for App.xaml below the Comment of <!-- Visual State Group Drop Down States --> type in the following XAML:


<VisualStateGroup x:Name="DropDownStates">
    <VisualState x:Name="Opened">
        <Storyboard>
            <SplitOpenThemeAnimation ClosedTargetName="ContentPresenter"
            OffsetFromCenter="{Binding TemplateSettings.DropDownOffset,
            RelativeSource={RelativeSource Mode=TemplatedParent}}"
            OpenedTargetName="PopupBorder"
            OpenedLength="{Binding TemplateSettings.DropDownOpenedHeight,
            RelativeSource={RelativeSource Mode=TemplatedParent}}"/>
        </Storyboard>
    </VisualState>
    <VisualState x:Name="Closed">
        <Storyboard>
            <SplitCloseThemeAnimation
            ClosedTargetName="ContentPresenter"
            OffsetFromCenter="{Binding TemplateSettings.DropDownOffset,
            RelativeSource={RelativeSource Mode=TemplatedParent}}"
            OpenedTargetName="PopupBorder"
            OpenedLength="{Binding TemplateSettings.DropDownOpenedHeight,
            RelativeSource={RelativeSource Mode=TemplatedParent}}"/>
        </Storyboard>
    </VisualState>
</VisualStateGroup>

This XAML is for the Visual State Group that will represent the Drop Down States of Open and Closed for the ComboBox used in the Custom ComboBox.

Step 12

Then in the XAML for App.xaml below the Comment of <!-- Content --> type in the following XAML:


<Border x:Name="Background" Grid.ColumnSpan="2"
Grid.Row="1" BorderBrush="Salmon" Background="LightSalmon"
BorderThickness="{TemplateBinding BorderThickness}" CornerRadius="15"/>
<Border x:Name="HighlightBackground"  Grid.ColumnSpan="2" Grid.Row="1"
BorderBrush="Gold" BorderThickness="{TemplateBinding BorderThickness}"
Background="{ThemeResource ComboBoxBackgroundUnfocused}"
Opacity="0" CornerRadius="15"/>
<ContentPresenter x:Name="ContentPresenter" Grid.Row="1"
HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"
Margin="{TemplateBinding Padding}" CornerRadius="15"
VerticalAlignment="{TemplateBinding VerticalContentAlignment}">
    <TextBlock x:Name="PlaceholderTextBlock"
    Foreground="{ThemeResource ComboBoxPlaceHolderForeground}"
    Text="{TemplateBinding PlaceholderText}"/>
</ContentPresenter>
<FontIcon x:Name="DropDownGlyph" Grid.Column="1" Grid.Row="1"
AutomationProperties.AccessibilityView="Raw" Foreground="Gold"
FontSize="12" FontFamily="{ThemeResource SymbolThemeFontFamily}"
Glyph="&#xE0E5;" HorizontalAlignment="Right" IsHitTestVisible="False"
Margin="0,10,10,10" VerticalAlignment="Center"/>

This XAML is the Content for the layout of a ComboBox when the Style is applied for the Custom ComboBox.

Step 13

Then in the XAML for App.xaml below the Comment of <!-- Popup --> type in the following XAML:


<Popup x:Name="Popup">
    <Border x:Name="PopupBorder" BorderBrush="Salmon"
    BorderThickness="{ThemeResource ComboBoxDropdownBorderThickness}"
    Background="LightSalmon" HorizontalAlignment="Stretch"
    Margin="0,-1,0,-1" CornerRadius="15">
        <ScrollViewer x:Name="ScrollViewer"
        AutomationProperties.AccessibilityView="Raw"
        BringIntoViewOnFocusChange="{TemplateBinding
        ScrollViewer.BringIntoViewOnFocusChange}"
        Foreground="{ThemeResource ComboBoxDropDownForeground}"
        HorizontalScrollMode="{TemplateBinding
        ScrollViewer.HorizontalScrollMode}"
        HorizontalScrollBarVisibility="{TemplateBinding
        ScrollViewer.HorizontalScrollBarVisibility}"
        IsHorizontalRailEnabled="{TemplateBinding
        ScrollViewer.IsHorizontalRailEnabled}"
        IsVerticalRailEnabled="{TemplateBinding
        ScrollViewer.IsVerticalRailEnabled}"
        IsDeferredScrollingEnabled="{TemplateBinding
        ScrollViewer.IsDeferredScrollingEnabled}"
        MinWidth="{Binding TemplateSettings.DropDownContentMinWidth,
        RelativeSource={RelativeSource Mode=TemplatedParent}}"
        VerticalSnapPointsType="OptionalSingle" ZoomMode="Disabled"
        VerticalScrollBarVisibility="{TemplateBinding
        ScrollViewer.VerticalScrollBarVisibility}"
        VerticalScrollMode="{TemplateBinding
        ScrollViewer.VerticalScrollMode}"
        VerticalSnapPointsAlignment="Near">
            <ItemsPresenter Margin="{ThemeResource ComboBoxDropdownContentMargin}"/>
        </ScrollViewer>
    </Border>
</Popup>

This XAML is the Popup used for the ComboBox when the Style is applied for the Custom ComboBox.

Step 14

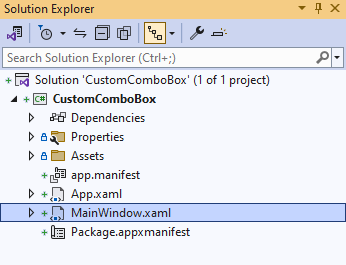

Within Solution Explorer for the Solution double-click on MainWindow.xaml to see the XAML for the Main Window.
Solution Explorer MainWindow.xaml

Step 15

In the XAML for MainWindow.xaml there will be some XAML for a StackPanel, this should be Removed:


<StackPanel Orientation="Horizontal"
HorizontalAlignment="Center" VerticalAlignment="Center">
    <Button x:Name="myButton" Click="myButton_Click">Click Me</Button>
</StackPanel>

Step 16

While still in the XAML for MainWindow.xaml above </Window>, type in the following XAML:


<ComboBox Margin="50" SelectedIndex="0"
HorizontalAlignment="Stretch"
VerticalAlignment="Center"
Style="{StaticResource CustomComboBox}">
    <ComboBoxItem Content="ComboBox"/>
    <ComboBoxItem Content="One"/>
    <ComboBoxItem Content="Two"/>
    <ComboBoxItem Content="Three"/>
    <ComboBoxItem Content="Four"/>
</ComboBox>

This XAML contains a ComboBox with Style set to the StaticResource of CustomComboBox from App.xaml.

Step 17

Within Solution Explorer for the Solution select the arrow next to MainWindow.xaml then double-click on MainWindow.xaml.cs to see the Code for the Main Window.
Solution Explorer MainWindow.xaml.cs

Step 18

In the Code for MainWindow.xaml.cs there be a Method of myButton_Click(...) this should be Removed by removing the following:


private void myButton_Click(object sender, RoutedEventArgs e)
{
    myButton.Content = "Clicked";
}

Step 19

That completes the Windows App SDK application. In Visual Studio 2022 from the Toolbar select CustomComboBox (Package) to Start the application.
CustomComboBox (Package)

Step 20

Once running you will see the Custom ComboBox displayed which you can Select to see the Options.

Custom ComboBox Running and Output

Step 21

To Exit the Windows App SDK application, select the Close button from the top right of the application as that concludes this Tutorial for Windows App SDK from tutorialr.com!
Close application
Custom ComboBox PDF
